SD-XS – 5/8″ – 1-1/4″ Adjustable Spiral Pedestal
$9.25
SkyJack SD-XS adjusts from 5/8″ to 1.25″ in precise 1 mm increments—perfect for low-clearance rooftop decks. Supports up to 2,150 lbs and pairs with Self-Leveling heads and Shims to ensure accurate leveling.

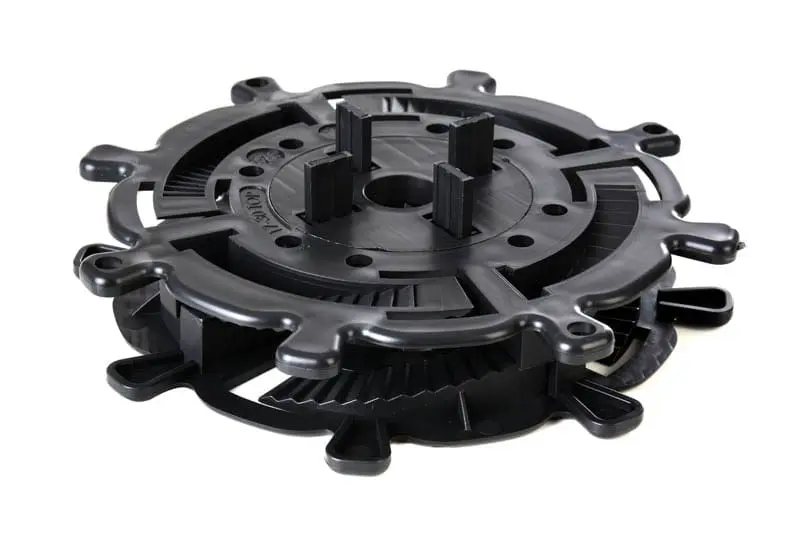

SkyJack SD-XS Adjustable Pedestal – Low-Profile Precision for Rooftop Decks and Terraces
The SkyJack SD-XS Adjustable Pedestal is the ideal low-profile support system for rooftop decks where minimal elevation is required. With an adjustable height range of 5/8″ to 1.25″, the SD-XS is perfect for tight threshold transitions, retrofits, and roof decks where build-up is limited but performance and drainage are still critical.

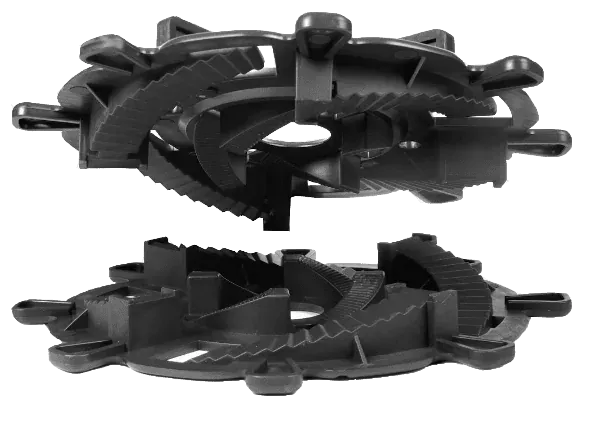

Engineered from high-strength, weather-resistant polypropylene, the SD-XS pedestal features a unique twist-adjust design with 1 mm incremental adjustments, allowing for extremely precise leveling. Built-in 3/16″ spacer tabs ensure uniform paver gaps and proper water drainage, while the smooth base protects waterproof membranes on sensitive roof surfaces.
Key Features:
-

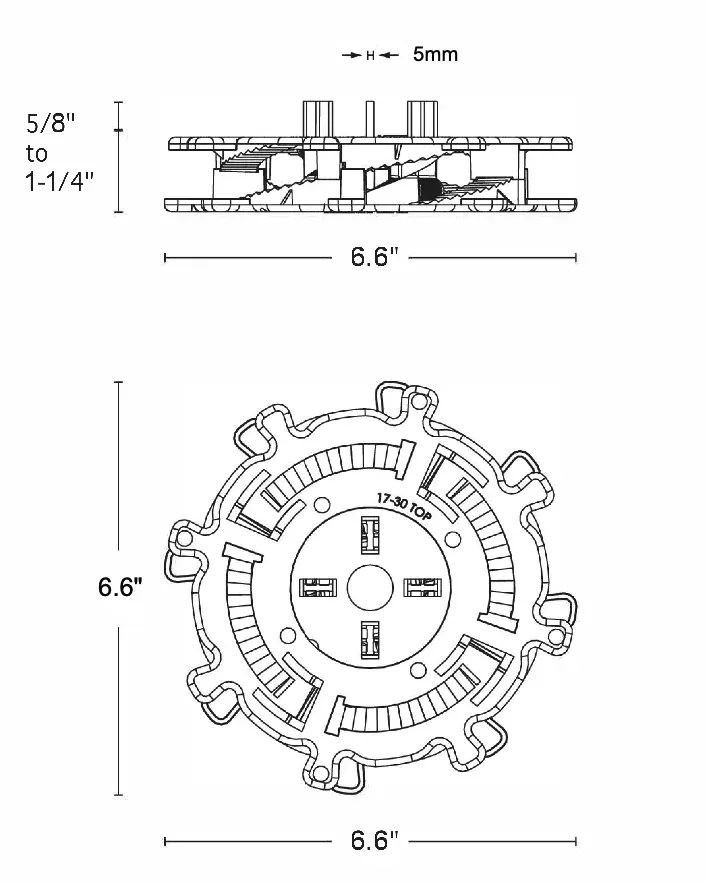

Adjustable height: 5/8″ to 1.25″
-
Precision 1 mm height increments via ergonomic twist system
-
Supports up to 2,150 lbs per pedestal
-
Built-in 3/16″ spacer tabs for consistent gap spacing
-
Ideal for porcelain, concrete, or wood pavers
-

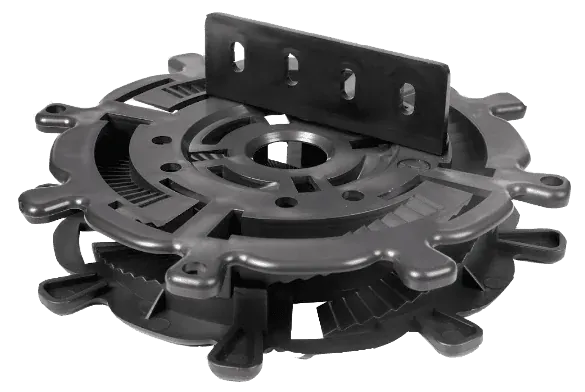

Compatible with self-leveling heads, shims, and joist adapters
-
Made from UV, weather, and chemical-resistant recycled HD polypropylene
For projects with limited build-up height that still demand strength and accuracy, the SkyJack SD-XS Adjustable Pedestal offers the ideal balance of low clearance and high performance.
