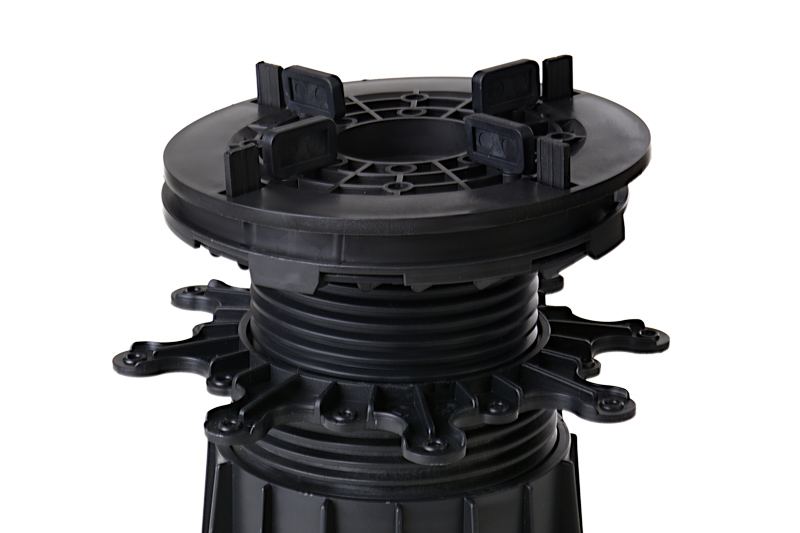

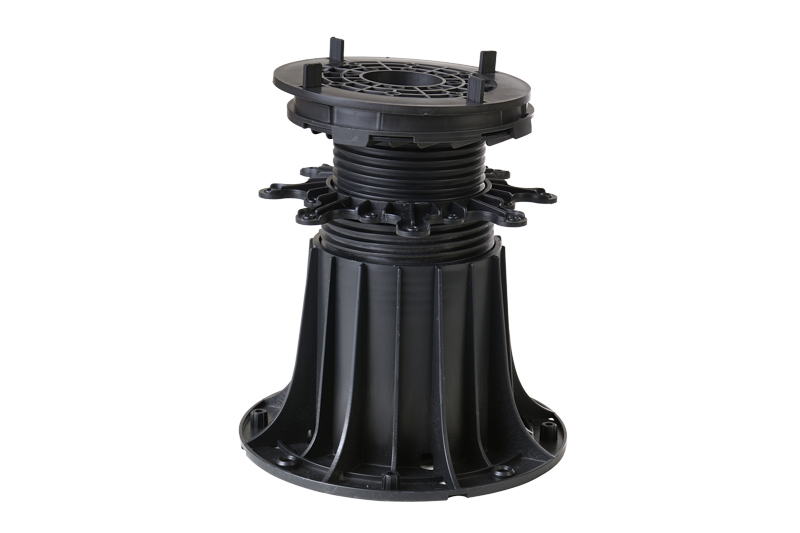

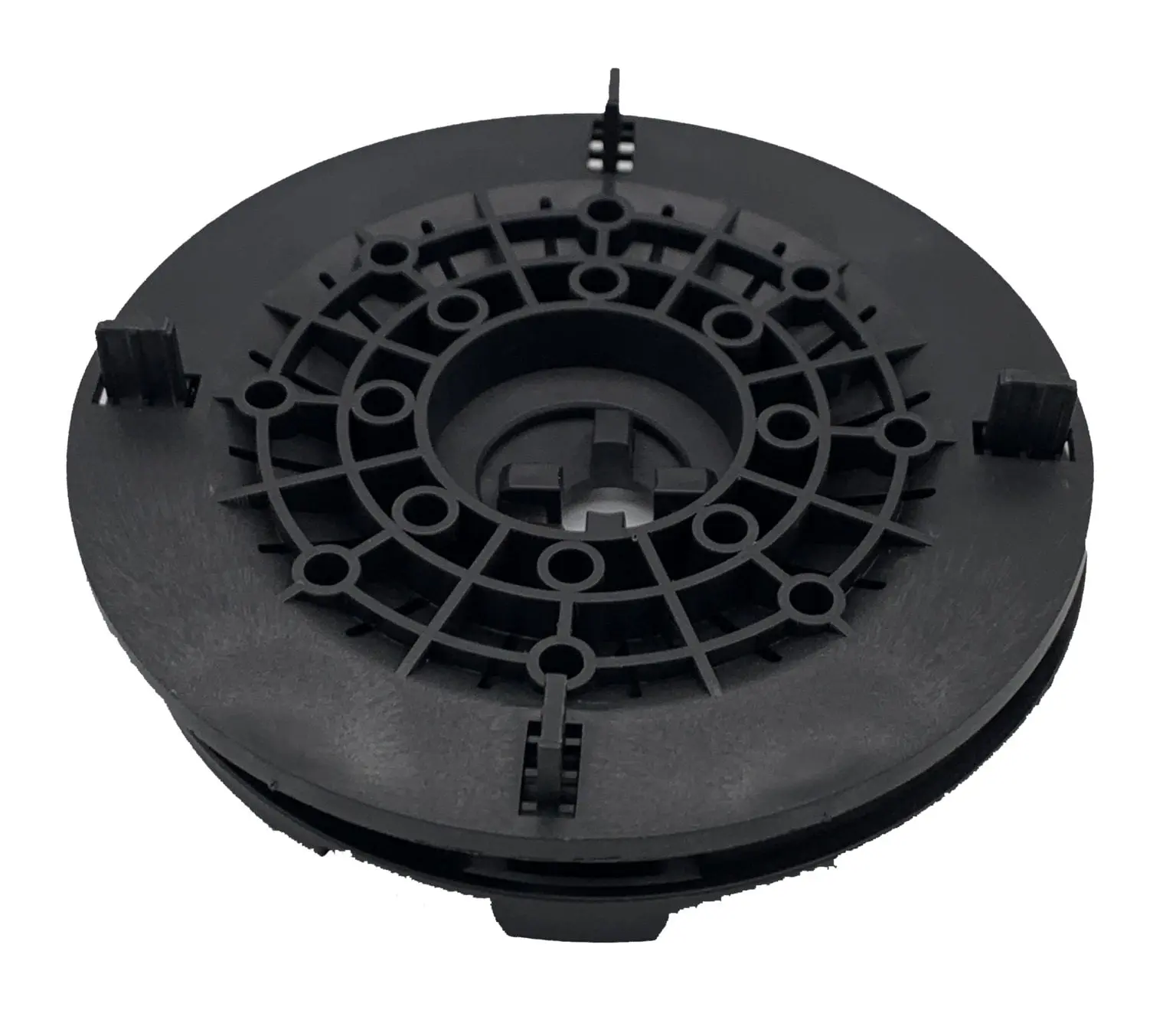

SD-SLH-XL Self-Leveling Heads for Use with SD-M, SD-L and SD-XL Pedestals


Self-leveling heads help compensate for slopes up to 7%.  Use this self-leveling head on top of the SD-XL pedestals.  This product quickly snaps onto the top of the SD-XL pedestal and can be used to create ramps, accommodate greater than typical slopes.  It is also recommended with all pedestals taller than 21.75″ tall.


Self-Leveling heads automatically adjust to slopes up to 6%, creating perfectly level patios on low slope roofs. They also make building ramps quick and hassle-free. XL Self-leveling heads are recommended on all pedestals over 13.75″.


  • Compatible with SD-01, SD-02 and SD-04 pedestals
  • Snap onto the top of the pedestal quickly and easily
  • Automatically shift to level any flooring tile when the pedestal is placed on a sloped surface
  • Accommodate slopes up to 7%
  • For use when roof slope is greater than 1/4″ per foot
  • Compatible with SD-AD Deck Joist Adapters when building deck joists on top of pedestals

Additional information

Weight 9 oz

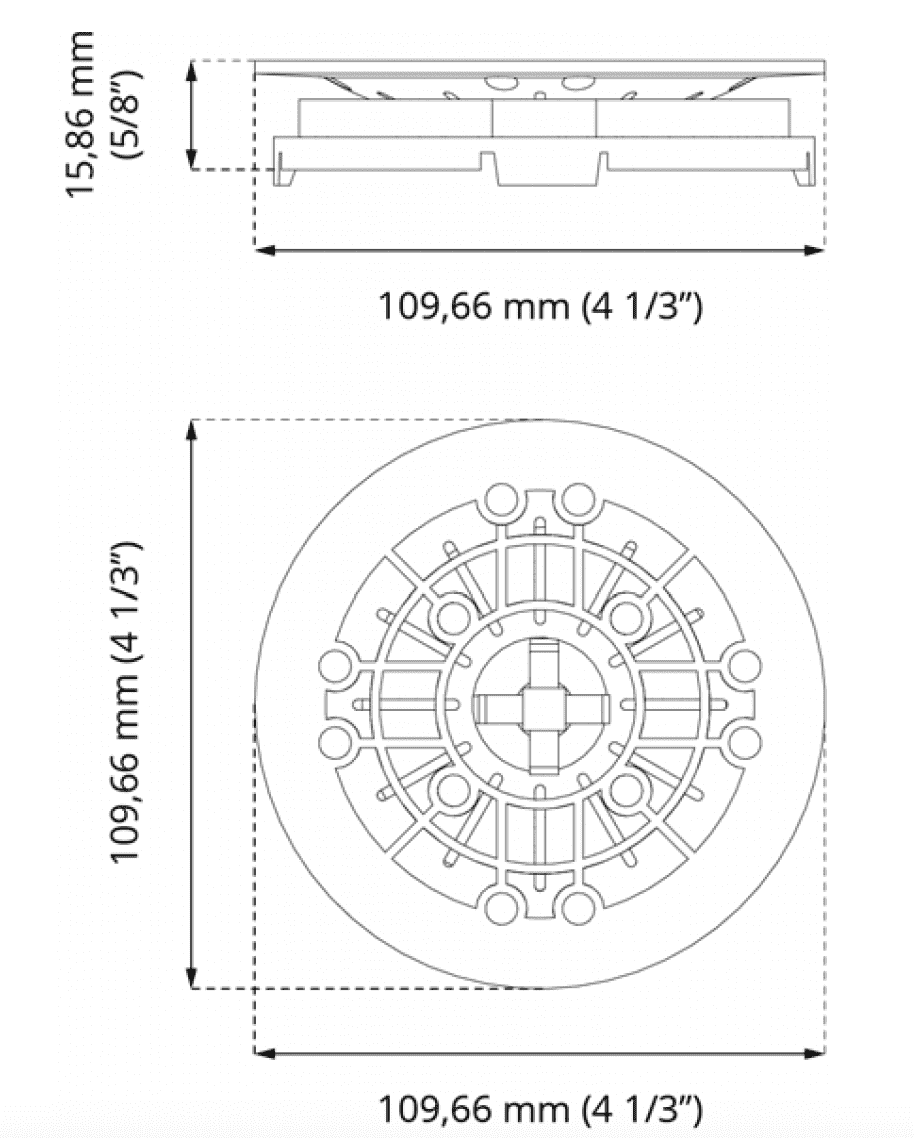

Dimensions 6.25 × 6.25 × 1.25 in

Installation Video
